Left wing: nav light is on
TLDR
- Installed and tested nav/strobe light on the left wing
Details
I first prepared the 4 wires coming out of the nav light, as well as the 4 wires from wing harness. They will be connected together using heat shrink connectors.
The wiring on the left nav light is identical to the right side.
| PIN | Color |
|---|---|
| Ground | Black |
| Nav | Red |
| Strobe | Yellow |
| Sync | Green |
I connected the wires between wing wire harness to the lights, then tested with a 9v battery. They work!

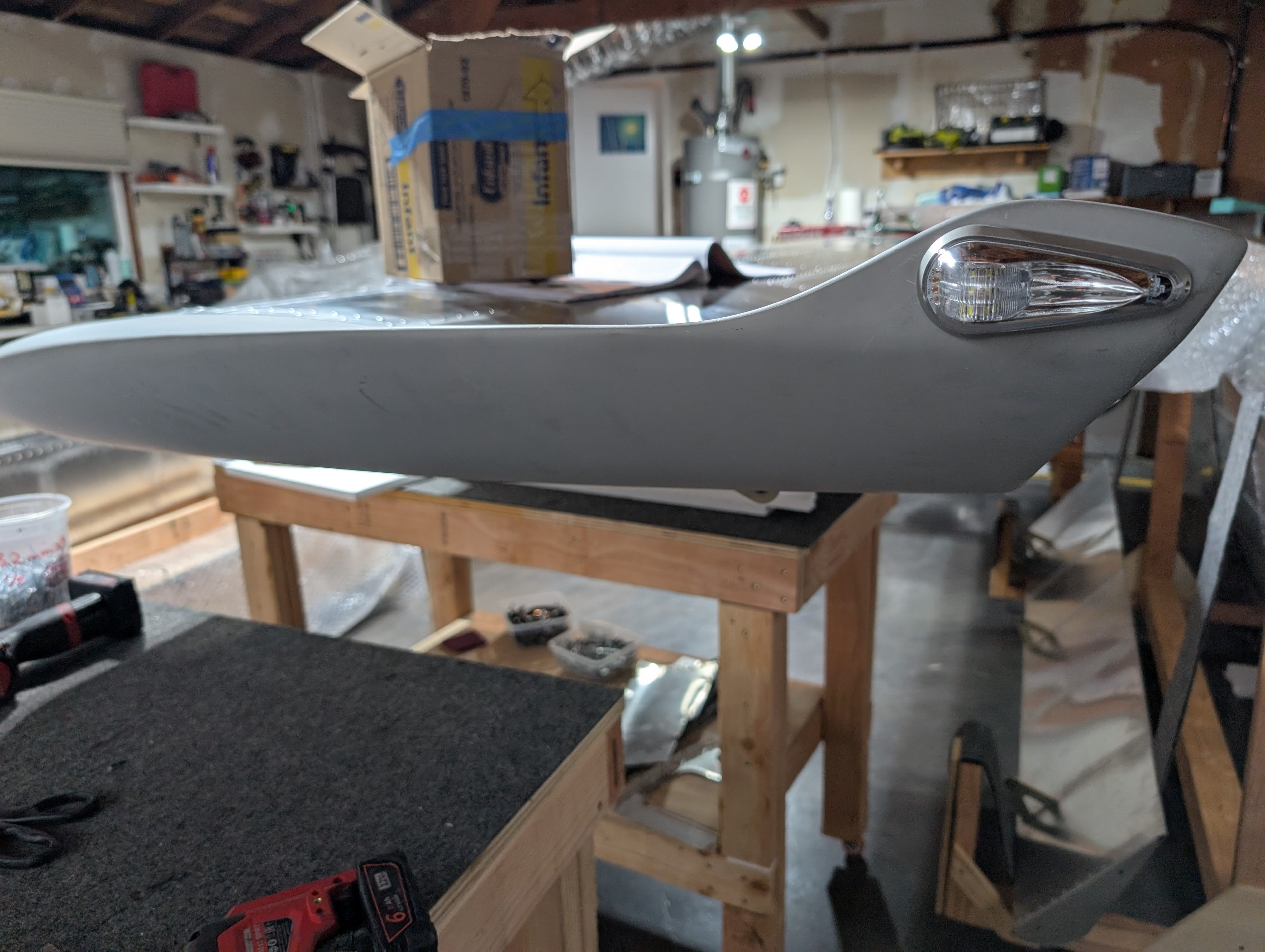

After that, I installed the light onto the wing, and locked it in place with an allen key.
